About this item

•   DIMENSIONS :- 1060mm (Length) x 810mm (Width) x 1600mm. (Height).

•   SAFE AREA: - 2.0 Meter x 1.8 Meter

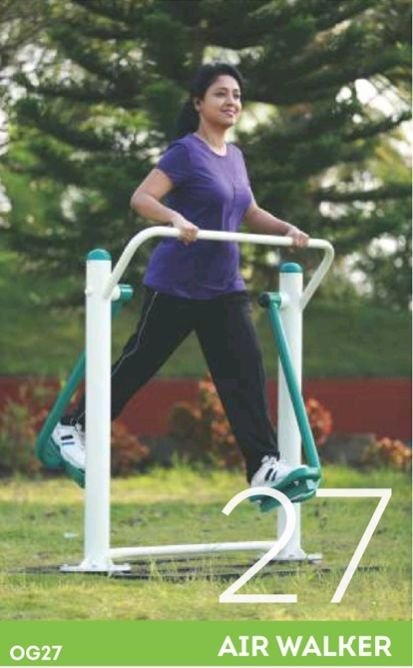

•   Air Walker Equipment made from “C” class G.I. Pipe of different NB.

       NB stands for Nominal Bore Sizes i.e. Internal Diameter of pipe in

     millimeters.

•   Make of G I Pipe will be of Tata, Jindal, Swastik, Zenith or

    Siddharth.

•   The main frame pipe is of 80mm NB made from “C” Class G.I. Material which is

       bend at the radius of 250mm.

•   The Sleeve frame is of 100 OD and of M.S. Seamless Pipe with thickness

     5mm. This sleeve can be easily disassembled from main frame.

•    The bottom support of M.S. round plate of Ø250 mm & 10mm thick.

•   The leg movement frame is of 32NB made from “C” Class G.I. pipe. This link is

      supported with MS flat of size 60X8mm.

•   The handle frame is of 25NB made from “C” Class G.I. pipe.

•    The foundation used for fixing is a structure and made from center pipe of G.I. of 80 NB “C” class welded with M.S. round plate of Ø250 mm & 10mm thick. Main pipe supported with 25 mm X 25mm M.S. angles of 3 mm thickness and 20mm x 40mm CRC square pipes.

•   Foundation cover Closing Cap is made from  FRP  Material with 0.7

       mm  thickness.

•   Closing Caps are made up of high quality Fiber reinforced Plastic material.

•   Pins used of Diameter   25mm are made up from SAE 8620 bright material.

      A24 circlips are used for assembly.

•    The bearings used are “6205zz permanent lubricated sealed bearing of reputed brand (SKF/FAG).

•   High tensile steel galvanized nuts & bolts are used for assembly.

•    The powder coating is done by Pure Polyester powder of Ackzonoble or Berger Paints with 60 to 70 micron thickness.

•    The footrests are made from casted Aluminum material, having sizes 130mm X 310mm X 5mm thick. With the support of 250mm X 115mm X 3mm thick MS plate.

  •   To build structure bushes are used which are made from M.S.seamless

     pipe of 60mm O.D.  and 5mm thickness as well as 60mm diameter solid

        bar bush is used.

•    Bolt M8X16 mm and Nylock nut of M8 made of SS 304 used on nylon cap

      mounted on pins to protect bearings and pins from rain and dust.

Only On Defective Prosuct.

All Government Taxes & GST Included.

Extra Charge On Installation.
