About this item

   •   DIMENSIONS: - 1150mm (Length) x 1150mm (Width) x 1300mm (Height).

•   SAFE AREA: - 2Mtr x 2Mtr.

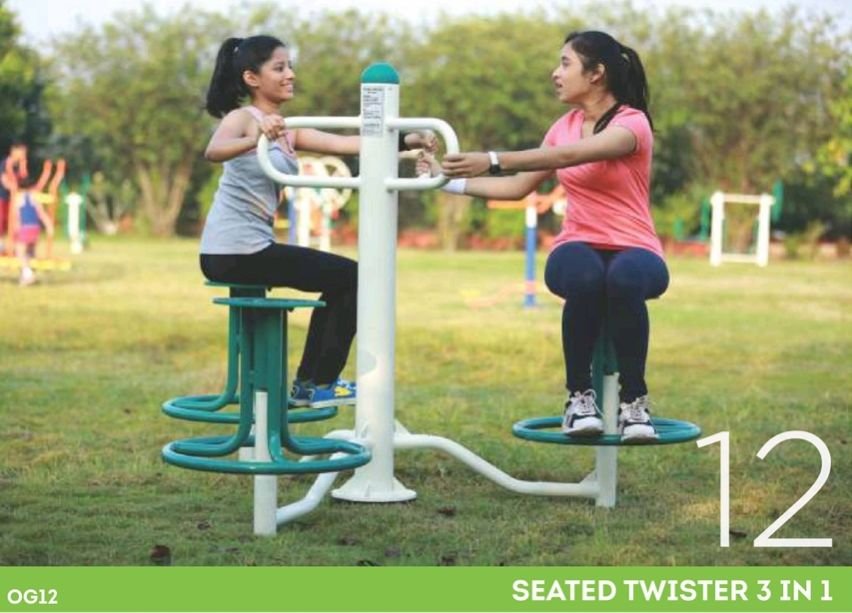

   •   Seated Twister Equipment made from “C” Class G.I. pipe of different

         NB.

 NB stands for Nominal Bore Sizes i.e. Internal Diameter of pipe in  millimeters.

 •   Make of G I Pipe will be of Tata, Jindal, Swastik, Zenith or

     Siddharth.

•   The Center Pipe is of 80 NB made from “C” Class G.I.  Pipe.

•   The chair Pipe is of 50 NB made from “C” Class G.I.  Pipe.

•    The M.S. round plate of Ø250 mm & 10mm thickness is welded at bottom.

•   The Sleeve frame for handle and bottom is of 125 OD and of M.S. Seamless Pipe with thickness 5mm. This sleeve can be disassembled from main frame.

•   The supporting frame of the seated twister is of 32 NB made from “C”

      class G.I. pipe.

•    The handle frame of seated twister is of 25 mm NB made from “C” class G.I. pipe.

 •         The foundation used for fixing is a structure and made from center pipe of G.I. of 80 NB “C” class, Welded with M.S. round plate of Ø250 mm &

10mm thick. Main pipe supported with 25 mm X 25mm M.S. angles of 3 mm thickness and 20mm x 40mm CRC square pipes of 3mm thickness.

•   The twister plate is fitted on the supporting frame is made up of 60NB

     seamless pipe. Ø300mm x 10mm thickness M.S. Round Plate.

   •   Closing Caps are made up of high quality Fiber reinforced Plastic material

    •   The Pins used are made up of Ø 35 mm SAE 8620 bright material.

•    The bearings used are of “6205zz” permanent lubricated sealed bearing of reputed brand (SKF/FAG).

  •    High tensile steel with galvanized nuts and bolts are used for assembly.

  •    The powder coating done with Pure Polyester powders from

      Ackzonoble or Berger Paints with 60 to 70 micron thickness.

Only On Defective Prosuct.

All Government Taxes & GST Included.

Extra Charge On Installation.
