About this item

•   DIMENSIONS: - 1840mm (Length) x 360mm (Width) x 1560mm. (Height).

•   SAFE AREA:- 2.8 x 1.4Mtr.

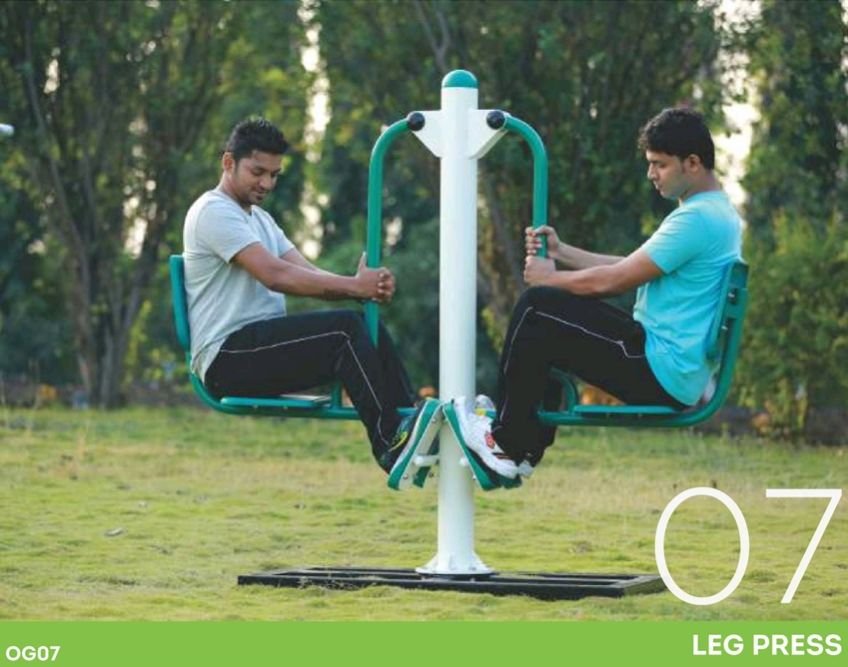

•   Leg Press equipment made from “C” Class G.I. pipe of different NB.

       NB stands for Nominal Bore Sizes i.e. Internal Diameter of pipe in

      millimeters.

•   Make of G I Pipe will be of Tata, Jindal, Swastik, Zenith or

    Siddharth.

•   The center pipe is of 100mm NB made from “C” Class G.I. pipe.

•   The Sleeve frame is of 100 OD and of M.S. Seamless Pipe with thickness

      5mm. This sleeve can be disassembled from main frame.

•    The bottom support of M.S. round plate of Ø250 mm & 10mm thick.

•    The remaining outer frame is of 32NB made from “C” class G.I. pipe.

•   The foundation used for fixing is structure and made from center pipe of G.I.

        of 80mm NB “C” class welded with M.S. round plate of Ø250 mm & 10mm

       thick. Main pipe supported with 25 mm X 25mm M.S. angle of 3 mm

        thickness and 20mm x 40mm CRC  square pipe of 3mm thickness.

•   Seat & Back rest provided are made up of MS deep draw quantity of 2mm thickness with no joint

      With uniform outer edge radius 20mm.

•    The footrests are made from casted Aluminum material, having sizes 130mm

     X 310mm X 5mm thick. With the support of 310mm X 130mm X 3mm thick

     MS plate.

•    The frame of footrests made up of 25 NB “C” class G.I. pipe.

•    Closing Caps are made up of high quality Fiber reinforced Plastic material.

•   To build structure bushes are used which are made from M.S. seamless

    pipe of 50mm O.D. and 5mm thickness.

•   The pins used are made up of Ø25 mm SAE 8620 bright material.

•    The bearings used are of “6205zz” permanent lubricated sealed bearing

      of reputed Brand (SKF/FAG).

 • High tensile steel with galvanized nut bolts are used for assembly.

 • The cerclips used for assembly are of A24 mm.

•   The powder coating done with Pure Polyester powder of Ackzonoble or

   Berger with 60 to 70 micron thickness.

Only On Defective Prosuct.

All Government Taxes & GST Included.

Extra Charge On Installation
