About this item

DIMENSIONS: - 1320mm (Length) x 600mm (Width) x 1750mm. (Height).

•   SAFE AREA:  - 1.77 x 1.2Mtr.

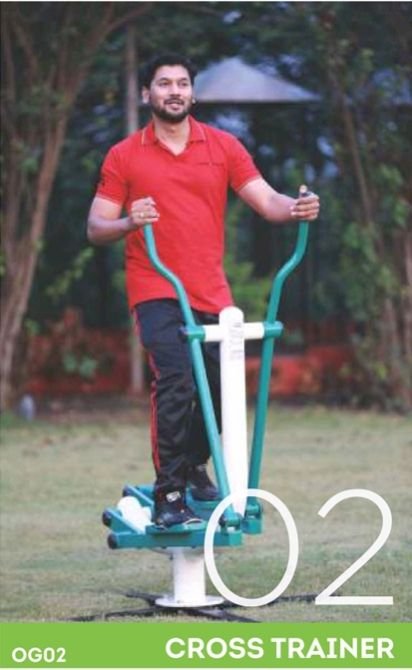

  •   Cross trainer equipment made from “C” Class G.I. Pipe of different NB.

       NB stands for Nominal Bore Sizes i.e. Internal Diameter of pipe in

      millimeters.

   •   Make of G I Pipe will be of Tata, Jindal, Swastik, Zenith

       or Siddharth.

•   The main frame Pipes are of 80NB “C” Class G.I. Pipe with single bend

      pipe with  250mm radius.

•   The bottom support of M.S. round plate of Ø250 mm & 10mm thick.

•   The Handle Frame is made up of 25NB “C” Class G.I.  Pipe.

  •    The foundation used for fixing is a structure and made from center pipe of

         G.I. of 80 NB “C” class welded with M.S. round plate of Ø250 mm & 10mm

         thick. Main pipe supported with 25 mm X 25mm M.S. angles of 3 mm

        thickness and 20mm x 40mm  CRC square  pipes of 3mm thickness.

    •  To build structure bushes are used which are made from

      M.S.seamless pipe of 60mm OD. With 5 mm thickness.

    •  The footrests are made from Aluminum casting material of size 130 mm X

           310mmX5mm thickness and mounted on M.S. Plate of Size

             130mmx310mmx3mm thick

    • Closing Caps are made up of high quality Fiber reinforced Plastic material.

    • Pins used of Diameter   35mm, 25mm, and 17mm are made up from SAE

         8620 bright .

    • The Bearings used are of “6007zz” “6205zz” and  “6203zz”  permanent

         lubricated sealed bearing of  reputed brand (SKF/FAG).

    • High tensile steel with galvanized nuts and bolts are used for assembly.

    • The powder coating is done with Pure Polyester powders of Ackzonoble

         or Berger Paints with 60 to 70 Micron thickness.

    • A16 , A 24 mm circlips are used for assembly.

   •  Bolt M8X16 mm and NY lock nut of M8 made of SS 304 used on nylon

       cap mounted on pins to protect bearings and pins from rain and dust

Only On Defective Prosuct.

All Government Taxes & GST Included.

Extra Charge On Installation.
