About this item

•   DIMENSIONS: - 1900mm (Length) x 740mm (Width) x 1920mm. (Height).

•   SAFE AREA:- 1.2Mtr x 3Mtr

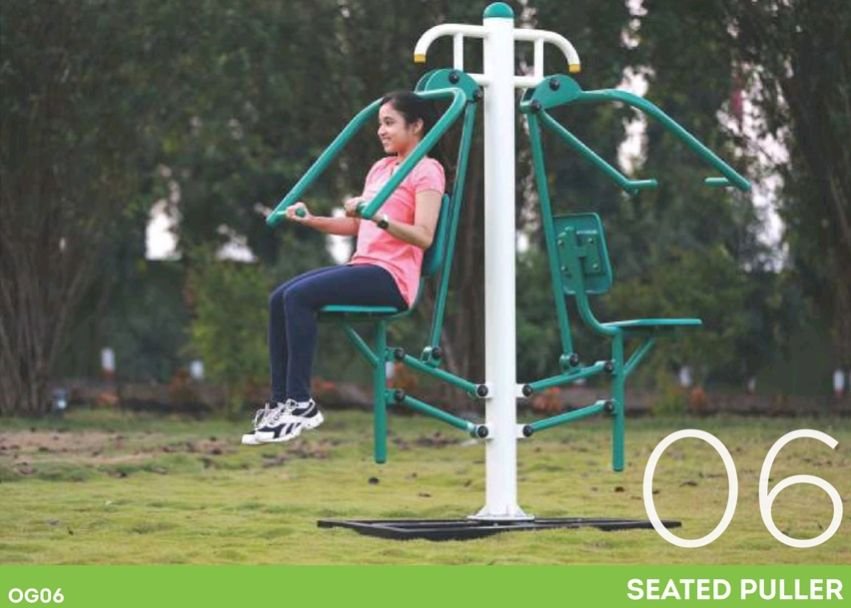

     •   Seated puller equipment made up of “C” Class G.I. pipe of different

           NB.

      NB stands for Nominal Bore Sizes i.e. Internal Diameter of pipe in

     millimeters.

•   Make of G I Pipe will be of Tata, Jindal, Swastik, Zenith

     or Siddharth.

•   The center pipe is of 100NB made from “C” Class G.I. pipe.

·   Bottom support is of M.S. round plate of Ø 250 mm & 10mm thickness

     is welded.

•   All linkages are made up of 25NB “C” class G.I. pipe.

•   The handle frame is of 32NB “C” class G.I. pipe.

•   The seat frame is of 32NB “C” class G.I. pipe,

•   To build structure bushes are used which are made from seamless pipe of 60mm O.D. and 5mm thickness as well as 60mm diameter solid bar bush is used.

 •     The foundation used for fixing is a structure and made from center pipe of G.I. of 80 NB             “C” class.  Welded with M.S. round plate of Ø250 mm & 10mm thick.  Main pipe supported with 25 mm X 25mm M.S. angles of 3 mm thickness and 20mm x 40mm CRC square pipes of 3mm thickness.

     •   Foundation cover Closing Cap is made from  FRP  Material.

•   The seats and Back rests are fitted on the outer frames are

     made up of M.S.

      Sheet of size 330 mm X 300 mmX2mm thickness and deep drawn

    and pressed in

    tools and dies to have uniform radius of 20 mm with no

    sharp edges.

     •   Closing Caps are made up of high quality Fiber reinforced Plastic material.

•   Pins used of Diameter   25mm and 17mm are made up from SAE 8620

      bright material.

•    The bearings used are of  “ 6205zz” and “6203zz” permanent lubricated sealed bearing of reputed brand (SKF/FAG).

•   High tensile steel with galvanized nuts & bolts are used for assembly.

•   The cerclips used for assembly are of A16

     •   The powder coating done with Pure Polyester powders of  Ackzonoble or

           Berger Paints with 60 to 70 micron thickness.

Only On Defective Prosuct.

All Government Taxes & GST Included.

Extra Charge On Installation.
