About this item

•   DIMENSIONS: - 2000mm (Length) x 630mm (Width) x 1750mm.(Height)

•   SAFE AREA: - 2.7Mtr x 1.6Mtr.

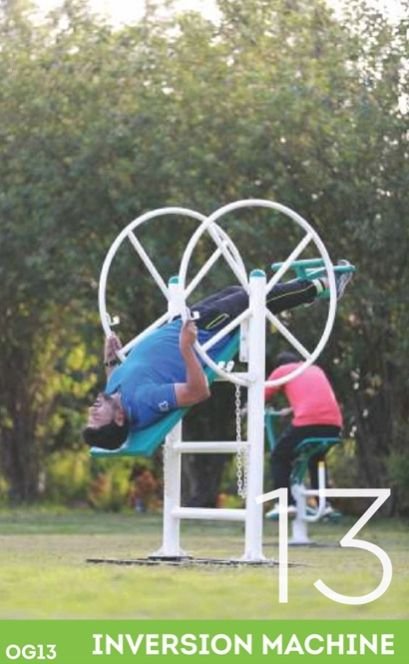

  •   Inversion machine Equipment made from “C” class M.S. Pipe of different NB.

         NB stands for Nominal Bore Sizes i.e. Internal Diameter of pipe in

         millimeters.

•   Make of G I Pipe will be of Tata, Jindal, Swastik, Zenith or

     Siddharth.

•   The main frame pipe is of 80mm NB made from “C” Class M.S. Material.

•   The outer ring of inversion machine is 25mm NB made from “C” Class M.S. pipe.

•   For connecting the rotating frame to main frame 32mm NB  “C” Class M.S.

       pipe is used.

•   The  movement frame is of 50 x 50mm x 2mm thick CRC square pipe.

•   The handle frame is of 32mm NB made from “C” Class M.S. pipe.

•   The foundation used for fixing is a structure and made from center pipe of G.I. of 80 NB “C” class  Welded with M.S. round plate of Ø250 mm & 10mm thick. Main pipe supported with 25 mm X 25mm M.S. angles of 3 mm thickness and 20mm x 40mm CRC square pipes of 3mm thickness.

•    Closing Caps are made up of high quality Fiber reinforced Plastic material.

•   The pins used are made up of Ø 25mm SAE8620 bright material.

•    The bearings used are “6205zz” permanent lubricated sealed bearing of reputed brand (SKF/FAG).

•   High tensile steel with galvanized nuts & bolts are used for assembly.

•   The cerclips used for assembly are of Ø25 mm.

•    The powder coating done with Pure Polyester powders from Ackzonoble

     or Berger Paints with 60 to 70 micron thickness.

Only On Defective Prosuct.

All Government Taxes & GST Included.

Extra Charge On Installation.
