About this item

•   DIMENSIONS: - 700mm (Length) x 1000mm (Width) x 1280mm (Height).

•   Safe Area:- 1.9Mtr X 1.9Mtr

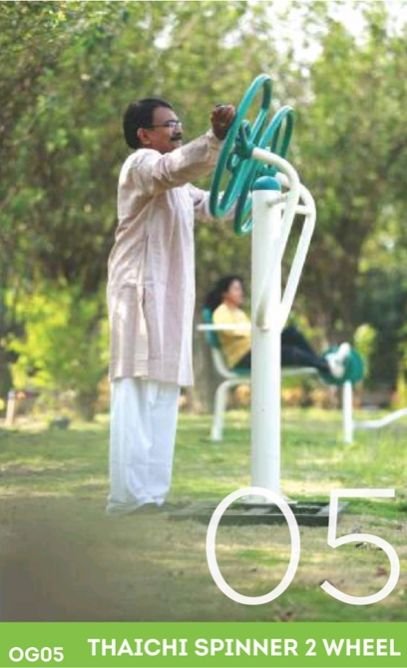

•    Thai chi spinner Equipment made up of “C” Class G.I. pipe of different NB.

NB stands for Nominal Bore Sizes i.e. Internal Diameter of pipe in millimeters.

 •   Make of G I Pipe will be of Tata, Jindal, Swastik, Zenith or

      Siddharth.

 •   The center pipe is of 100NB made up of “C” Class G.I. pipe.

 •    The handle movement round frame is made up from 25 NB “C” class G.I. pipe

 •   The foundation used for fixing is a structure and made from center pipe of

        G.I. of 80 NB “C” class Welded with M.S. round plate of Ø250 mm & 10mm

       thick. Main pipe supported with 25 mm X 25mm M.S. angles of 3 mm

       thickness and 20mm x 40mm CRC square pipes of 3mm thickness.

 •   Closing Caps are made up of high quality Fiber reinforced Plastic material.

•   The pins used are made up of Ø 25 mm of SAE8620 bright material.

•    The bearing used is “6201zz” & “6205zz” permanent lubricated sealed

    bearing of reputed brand (SKF/FAG).

•   High tensile S.S. nut bolts are used for assembly.

•   Foundation cover Closing Cap is made from  FRP  Material with 0.7 mm

      thickness.

•   The cerclips used for assembly is of A24 and A11.

•   The nylon bush is used for handle knob.

•    The powder coating done with pure Polyester powders from Ackzonoble

    or Berger Paints with 60 to 70 micron thickness.

•    Bolt M8X16 mm and Nylock nut of M8 made of SS 304 used on nylon cap

      mounted on pins to protect bearings and pins from rain and dust.
