About this item

·         PRODUCT DIMENSIONS: - 1760mm (Length) x 1140mm (Width) x 660mm (Height).

·         SAFE WORKOUT AREA: - 2500mm (Length) x 1600mm (Width).

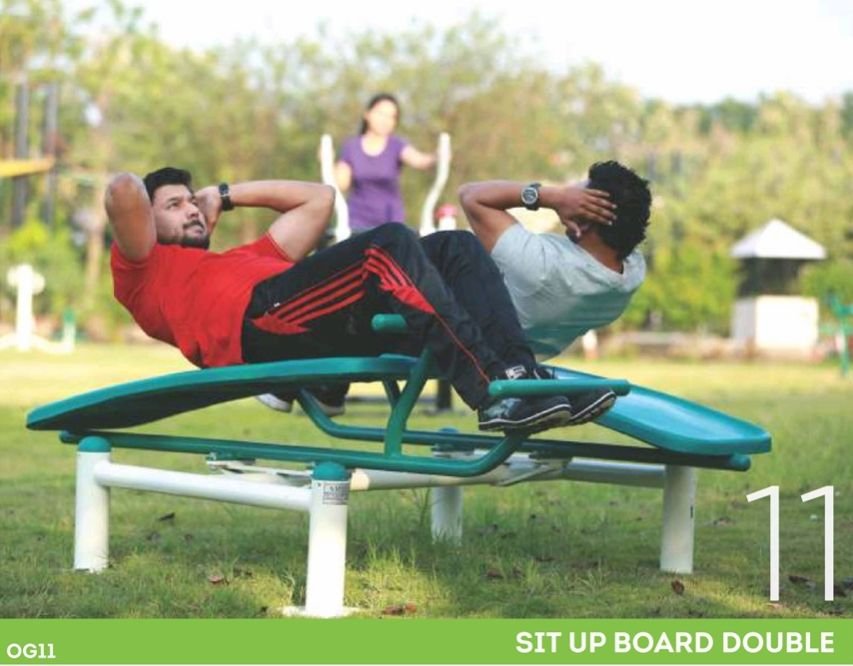

• The Sit up Board double made from “C” Class GI pipe. Center column made from 100mm NB “C” class G.I. Pipe.
• Make of G I Pipe will be of Tata, Jindal, Swastik, Zenith or Siddharth.
• The main frame is of 25mm NB made from “C” Class GI pipe. FRP sheet of 3mm thickness is molded on main frame.
•  The remaining frame of the sit up board is of 32mm NB made from “C” class GI pipe.
• The powder coating is done with Pure Polyester powder Ackzonoble or Berger Paints with 60 to 70  micron thickness.

             The foundation used for fixing is a structure and made from center pipe of G.I.

          of 80 NB “C” class Welded with M.S. round plate of Ø250 mm & 10mm thick.

          Main pipe supported with 25 mm X 25mm M.S. angles of 3 mm thickness and

         20mm x 40mm CRC square pipes of 3mm thickness.

Only On Defective Prosuct.

All Government Taxes & GST Included.

Extra Charge On Installation.
