About this item

•   DIMENSIONS: - 1720mm (Length) x 630mm (Width) x 1750mm.(Height)

•   SAFE AREA: - 2.7Mtr x 1.6Mtr.

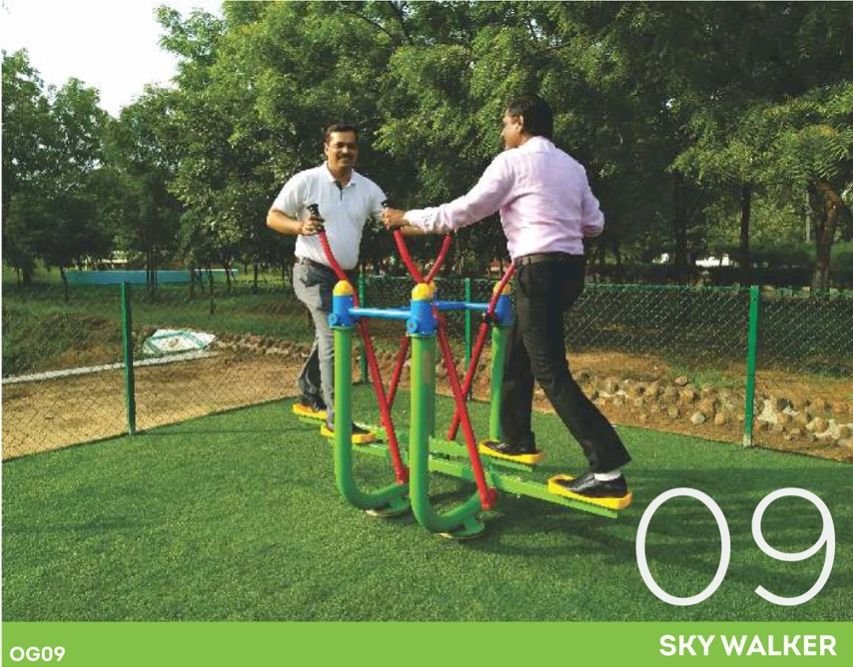

  •   Sky Walker Equipment made from “C” class G.I. Pipe of different NB.

         NB stands for Nominal Bore Sizes i.e. Internal Diameter of pipe in

        millimeters.

•   Make of G I Pipe will be of Tata, Jindal, Swastik, Zenith or

    Siddharth.

•   The main frame pipe is of 80mm NB made from “C” Class G.I. Material which is

       bend at the radius of 250mm.

•   The leg movement frame is of 50 x 50mm x 3mm thick CRC square pipe.

•   Sleeves are made up of 100 mm OD M.S. pipe with thickness 5mm. This

      results in easy replacement of bearings, pins and handle.

•   The handle frame is of 25mm NB made from “C” Class G.I. pipe.

  •   The foundation used for fixing is a structure and made from center pipe of

        G.I. of 80 NB “C” class.  Welded with M.S. round plate of Ø250 mm & 10mm

      thick.  Main pipe supported with 25 mm X 25mm M.S. angles of 3 mm

      thickness and 20mm x 40mm CRC square pipes of 3mm thickness. Two

      foundations are provided for rigid support.

•   The footrests made from Aluminum casting material of size 130 X 310 X 5mm.

  •   Closing Caps are made up of high quality Fiber reinforced Plastic material.

•   The pins used are made up of Ø 25mm SAE8620 bright material. Pins are fixed at the outer end with M8 grub screws and Dia.8mm SS ball.

•    The bearings used are “6205zz” are permanent lubricated sealed bearing of reputed brand (SKF/FAG).

•   High tensile steel with galvanized nuts & bolts are used for assembly.

•   The cerclips used for assembly are of A24 type.

  •       The powder coating is done with Pure Polyester powder  of Ackzonoble

      or Berger with 60 to 70 micron thickness.

Only On Defective Prosuct.

All Government Taxes & GST Included.

Extra Charge On Installation.
