About this item

DIMENSIONS: - 1570mm (Length) x 570mm (Width) x 900mm. (Height).

•   SAFE AREA: - 2.5Mtr x 1.5Mtr.

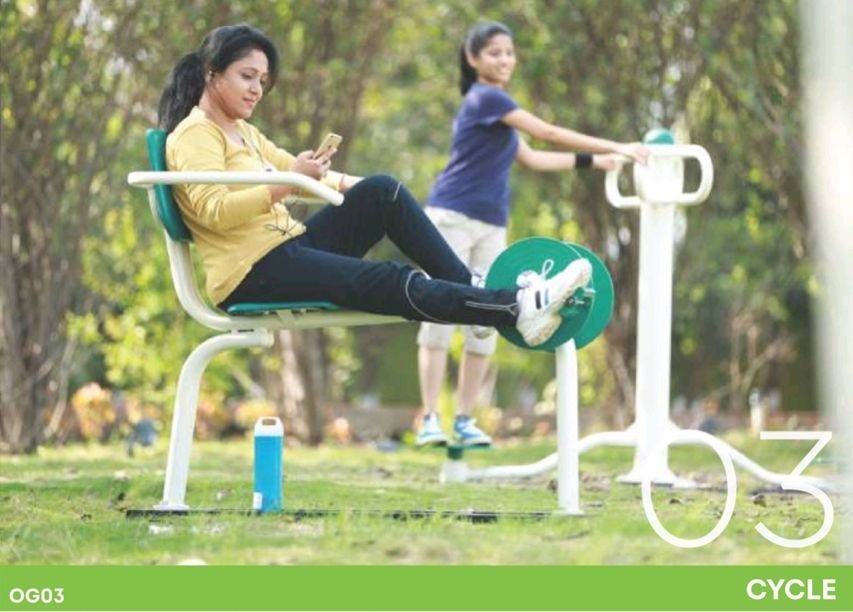

•   Cycle equipment made from “C” class G.I. Pipe of different NB. (NB stands

      for Nominal

       Bore Sizes i.e. Internal Diameter of pipe in millimeters).

•    Make of G I Pipe will be of Tata, Jindal, Swastik, Zenith or

     Siddharth.

•   The main frame of 50 NB made from “C” Class G.I. pipes.

•    M.S. round plate of Ø300 mm & 10mm thickness used to form a paddle assembly.

•   The handle frame is of 25NB made from “C” Class G.I. pipe.

·         The seats and Back rests are fitted on the outer frames are made up of M.S. Sheet of size 330 mm X 300 mmX2mm thickness and deep drawn and pressed in tools and dies to have uniform radius of 20 mm with no sharp edges.

  •    For foundation 32NB “C” class G.I. pipe used.

  •   Closing Caps are made up of high quality Fiber reinforced Plastic material.

  •   Pins used of Diameter   25mm are made up from SAE 8620 bright material.

•    Pins used of Diameter 13mm are made up from EN8 material with

       CRCA pipe 20X20mm of thickness 3.00mm for paddle assembly.

•    The bearings used are 6001zz & 6205zz permanent lubricated sealed  bearing of reputed brand (SKF/FAG).

•   High tensile steel with galvanized nuts and bolts are used for assembly.

•   The circlip used for assembly are of A24 type.

  •  The powder coating done with Pure Polyester powders from Ackzonoble

     or Berger Paints with 60 to 70 micron thickness.

Only On Defective Prosuct.

All Government Taxes & GST Included.

Extra Charge On Installation.
