About this item

  •   DIMENSIONS: - 1200mm (Length) x 1000mm (Width) x 920mm. (Height)

•   SAFE AREA: - 1.5Mtr. x 1.5Mtr.

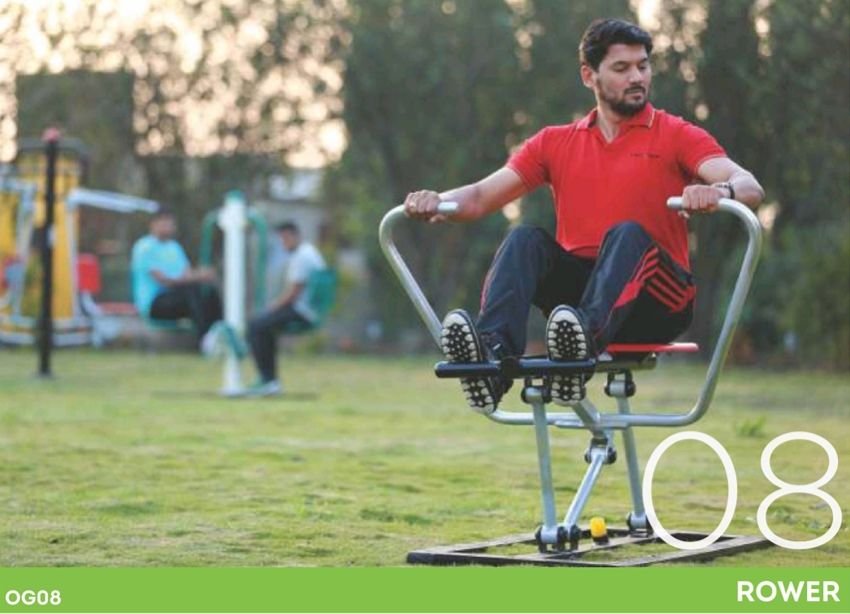

  •   Rower Equipment made from “C” Class G.I. pipe of different NB.

NB stands for Nominal Bore Sizes i.e. Internal Diameter of pipe in millimeters.

  •   Make of G I Pipe will be of Tata, Jindal, Swastik, Zenith or

      Siddharth.

•   The Main frame is of 80NB “C” class G.I.. Pipe welded with M.S. round plate

      of 250mmX10mm.

•   The handle frame 25NB is made from “C” class G.I. pipe.

•    The foundation used for fixing is a structure and made from center pipe of G.I. of 80 NB “C” class Welded with M.S. round plate of Ø250 mm & 10mm thick. Main pipe supported with 25 mm X 25mm M.S. angles of 3 mm thickness and 20mm x 40mm CRC square pipes of 3mm thickness.

•    To join the movement frame to main frame connecting links made up from 32 NB G.I. “C” class pipe.

  •   The seat fitted on the outer frames are made up of M.S. Sheet of size 330

       mm X  300mmX2mm thickness and deep drawn and pressed in

      tools and dies to have uniform radius of 20 mm with no

      sharp edges.

  •   Pins used of Diameter 17mm are made up from SAE 8620 bright material.

•    The bearings used are of “6203zz” permanent lubricated sealed bearing of reputed brand (SKF/FAG).

•   High tensile steel with galvanized nuts and bolts are used for assembly.

•   The P.U. bushes (Stopper) used to avoid the collision.

•   The circlips used for assembly is of A 16

 •         The powder coating done with Polyester powders from Ackzonoble or

      Berger Paints with 60 to 70 micron thickness

Only On Defective Prosuct.

All Government Taxes & GST Included.

Extra Charge On Installation.
