About this item

•   DIMENSIONS: - 910mm (Length) x 860mm (Width) x 1400mm.(Height).

•   Safe Area:-1.39 x 1.27Mtr.

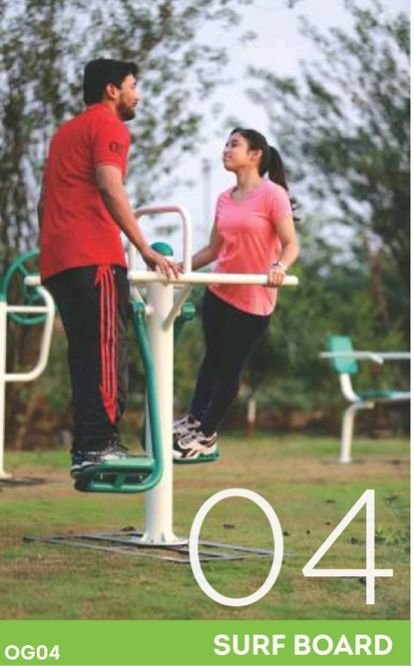

  •   Surf Board Equipment made from “c” Class G.I. pipe of different NB.

         NB stands for Nominal Bore Sizes i.e. Internal Diameter of pipe in

       millimeters.

 •   Make of G I Pipe will be of Tata, Jindal, Swastik, Zenith or

      Siddharth.

•   The center pipe is of 100mm NB made from “c” class G.I. pipe.

•   The sleeve pipe is of 125mm OD seamless pipe with thickness of 5mm and

      bolted to main frame with M10 SS bolts.

•    The bottom support welded of M.S. plate of Ø 250 mm & 10mm thickness.

•   The handle frame is of  25NB made from “c” class G.I. pipe.

•   The paddle  frame is of  50NB made from “c” class G.I. pipe is supported

     With  70X8mm bend M.S. flat and can be replaceable.

 •    The foundation used for fixing is a structure and made from center pipe of

       G.I. of  80NB  “c” class  welded with M.S. round plate of Ø250 mm & 10mm

      thick.  Main pipe supported with 25 mm X 25mm M.S. angles of 3 mm

      thickness and 20mm x  40mm CRC square pipes of 3mm thickness.

•    Bushes are used 70mm Outer Diameter with 5mm thickness is used.

•   The footrests made from Aluminum casting material of size

       320mmX270mmX5mm.

•    For support to footrest 200mmX250mm with 3mm thickness M.S. Plate used.

•   Closing Caps are made up of high quality Fiber reinforced Plastic material.

•   The pins used are made up of Ø35 mm SAE 8620 bright

Only On Defective Prosuct.

All Government Taxes & GST Included.

Extra Charge On Installation.

material.

•    The bearing used are of “6007zz” permanent lubricated sealed bearing of reputed brand (SKF/FAG).

•   High tensile steel with galvanized nut bolts are used for assembly.

•   The cerclips used for assembly is of A34.

 •         The powder coating is done with Pure Polyester powder of Ackzonoble

     or Berger with 60 to 70 micron thickness.
