About this item

•   DIMENSIONS: - 2300mm (Length) x 860mm (Width) x 1600mm.(Height).

•   Safe Area:- 1.39 x 1.27Mtr.

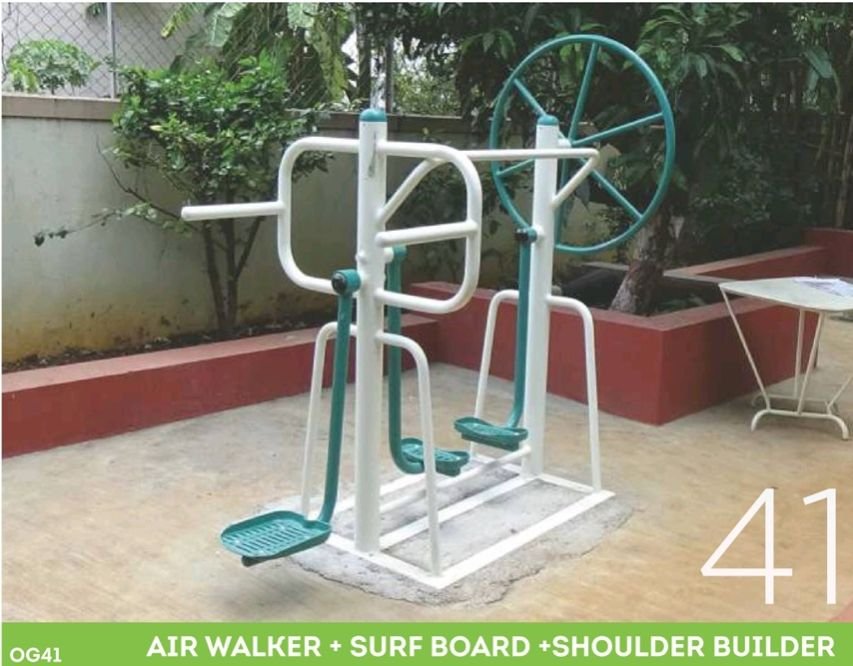

•    Air Walker cum leg press cum shoulder builder Equipment made from “c” class G.I. Pipe of different NB.  NB stands for Nominal Bore Sizes i.e. Internal Diameter of pipe in millimeters.

•   Make of G I Pipe will be of Tata, Jindal, Swastik, Zenith or Siddharth.

•   The main frame of 100NB made from “c” Class G.I. pipe.

•   The Sleeve frame is of 100 OD and of M.S. Seamless Pipe with thickness

     5mm. This Sleeve can be disassembled from main frame.

•    The bottom support frame of M.S. 40mm x75mmx3mm thick C Channel.

•   The leg movement frame is of 32NB made from “c” Class G.I. pipe.

•   The handle frame is of 25NB made from “c” Class G.I. pipe.

  •   Closing Caps are made up of high quality Fiber reinforced Plastic material.

•   Pins used of Diameter   25mm are made up from SAE 8620 bright material.

  •   Bolt M8X16 mm and Nylock nut of M8 made of  SS 304 used on nylon cap

        mounted on pins to protect bearings and pins from rain and dust.

•    The bearings used are “6001zz” & “6205zz” & “6007zz” permanent lubricated sealed bearing of reputed brand (SKF/FAG).

•   High tensile steel galvanized nuts & bolts are used for assembly.

•   A24  cerclips are used for assembly.

•    300mm diameter x 10mm thick plate used for rotating seat of seating twister with 50NB “c” class G.I. pipe.

•    The footrests are made from casted Aluminum material, having sizes 130mm X 310mm X 5mm thick. With the support of 250mm X 115mm X 3mm thick MS plate.

•    It has Bolting provision for mounting on concrete slab.

  •    The powder coating done with Pure Polyester powders from Ackzonoble

     or Berger Paints with minimum 60 to 70 micron thickness.

•    Bolt M8X16 mm and Nylock nut of M8 made of SS 304 used on nylon cap

      mounted on pins to protect bearings and pins from rain and dust.

Only On Defective Prosuct.

All Government Taxes & GST Included.

Extra Charge On Installation.
