About this item

DIMENSIONS: - 1500mm (Length) x 1500 mm (Width) x 2200mm.

            (Height).

•   SAFE AREA: - 2.5Mtr x2.5Mtr.

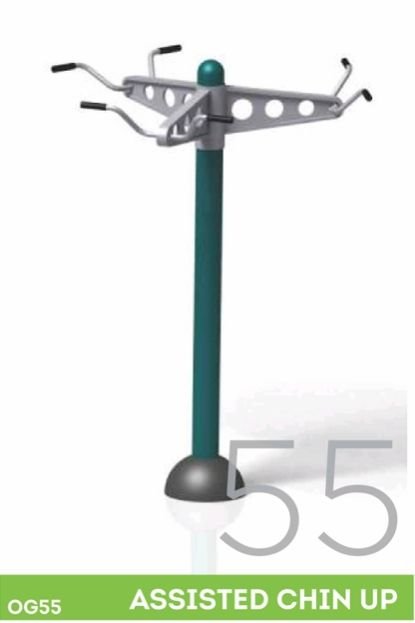

    •   chin up equipment made from “C” class G.I. Pipe of different NB.

       NB stands for Nominal Bore Sizes i.e. Internal Diameter of pipe in

      millimeters.

•   Make of G I Pipe will be of Tata, Jindal, Swastik, Zenith

     or Siddharth.

•   The main frame made up of 100 NB “C” Class G.I. pipe.

    •    The Sleeve frame is of 100 OD and of M.S. Seamless Pipe with thickness

           5mm. This sleeve can be disassembled from main frame.

    •   The profile of “U” shape made up of MS. material.

    •   The handle pipe is made up of MS. solid bar of Ø 25mm.

      •   Closing Caps are made up of high quality Fiber reinforced Plastic material

    •   The foundation used for fixing is a structure and made from center pipe

            of G.I. of 80 NB “C” class Welded with M.S. round plate of Ø250 mm &

           10mm thick. Main pipe supported with 25 mm X 25mm M.S. angles of 3

            mm thickness and 20mm x 40mm CRC square pipes of 3mm

           thickness.

    •   Foundation cover Closing Cap is made from FRP Material.

      •   The powder coating is done with Pure Polyester powders of

           Ackzonoble or Berger Paints with 60 to 70 Micron thickness..

Only On Defective Prosuct.

All Government Taxes & GST Included.

Extra Charge On Installation.
