About this item

•   DIMENSIONS: - 2000mm (Length) x 710mm (Width) x 2200mm. (Height).

•   SAFE AREA: - 3.0Mtr x 1.7Mtr.

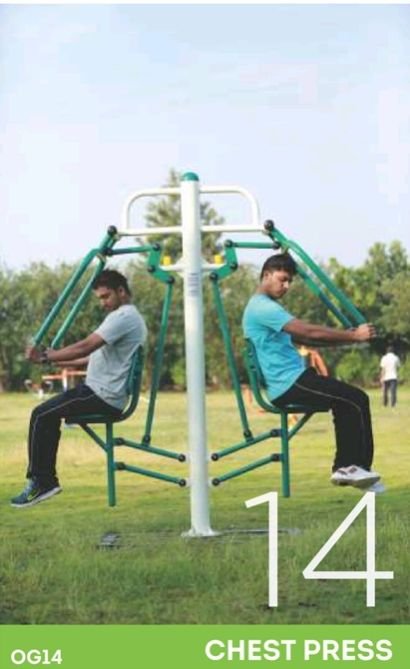

•   Chest press equipment made up of “C” Class G.I. pipe of different NB.

      NB stands for Nominal Bore Sizes i.e. Internal Diameter of pipe in

      millimeters.

•   Make of G I Pipe will be of Tata, Jindal, Swastik, Zenith

    or Siddharth.

•   The center pipe is of 100NB made up of “C” Class G.I. pipe.

•   The bottom welded with support of M.S. round plate of Ø250 mm &

        10mm thickness.

•   The connecting pipes are made up from 25NB “C” class G.I. pipe.

•   The handle frame is made up from 32NB “C” class G.I. pipe.

•    To build structure bushes are used which are made from MS seamless pipe of 60mm O.D. and 5mm thickness as well as 60mm diameter solid bar bush is used.

    •   The foundation used for fixing is a structure and made from center pipe

            of G.I. of 80 NB “C” class Welded with M.S. round plate of Ø250 mm &

           10mm thick. Main pipe supported with 25 mm X 25mm M.S. angles of 3

            mm thickness and 20mm x 40mm CRC square pipes of 3mm

          thickness.

•   The seats and Back rests are fitted on the outer frames are

       made up of M.S. Sheet of size 330 mm X 300 mmX2mm thickness and

    deep drawn and pressed in tools and dies to have uniform

    radius of 20 mm with no sharp edges.

•   Closing Caps are made up of high quality Fiber reinforced Plastic material.

     •   Foundation cover Closing Cap is made from FRP  Material with 0.7

             thickness.

•   Pins used of Diameter   25mm and 17mm are made up from SAE 8620

      bright material.

    •    Bolt M8X16 mm and Nylock nut of M8 made of SS 304 used on nylon

           cap mounted on pins to protect  bearings and pins from rain and

           dust.

•    The bearings used are of “6205zz” & “6203zz” permanent lubricated sealed bearing of reputed brand (SKF/FAG).

•   High tensile steel with galvanized nuts & bolts are used for

assembly.

•   The cerclips used for locking is made up of A24 mm & A16mm.

•   The powder coating done with Pure Polyester powders from Ackzonoble or Berger Paints with 60 to 70 micron thickness.

Only On Defective Prosuct.

All Government Taxes & GST Included.

Extra Charge On Installation.
