About this item

   DIMENSIONS: - 1500mm (Length) x 600mm (Width) x 1300mm. (Height).

•   SAFE AREA: - 2.5Mtr.X 1.5Mtr.

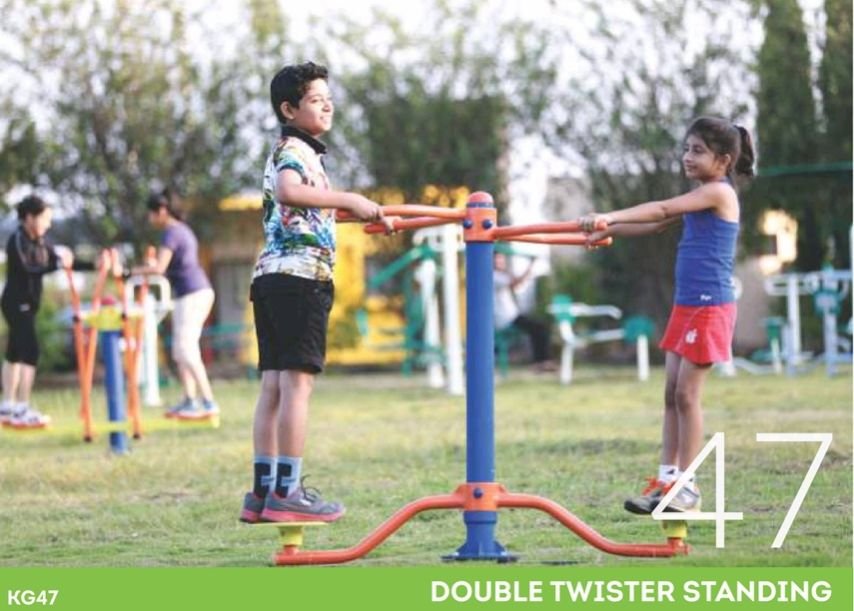

•   Double Twister equipment made from “C” Class G.I. pipe of different NB.

       NB stands for Nominal Bore Sizes i.e. Internal Diameter of pipe in

      millimeters.

•   Make of G I Pipe will be of Tata, Jindal, Swastik, Zenith or

     Siddharth.

•   The Center Pipe is of 100NB made from “C” Class G.I. material.

 •  The bottom welded with support of M.S. round plate of Ø250 mm & 10mm

thickness.

•   The bottom frame is of 32NB made from “C” class  G.I. pipe.

•   The handle frame is of 25NB made from “C” class G.I. pipe.

•    The foundation used for fixing is a structure and made from center pipe of G.I. of 80 NB”C” class welded with M.S. round plate of Ø250 mm & 10mm thick. Main pipe supported with 25 mm X 25mm M.S. angles of 3 mm thickness and 20mm x 40mm CRC square pipes of 3mm thickness.

•  The Twister plate fitted on the bottom frame is made up of  M.S. Round

    Plate of size Ø300mm and 10mm thick.

 •   Closing Caps are made up of high quality Fiber reinforced Plastic material.

•   Pins used of Diameter   35 mm are made up from SAE 8620 bright material.

• The bearings used are of “6205zz” permanent lubricated sealed bearing of reputed Brand.

 •   High tensile steel with galvanized nuts and bolts are used for assembly.

•   The powder coating done with Pure Polyester powders from Ackzonoble

    or Berger Paints with 60 to 70 micron thickness.

Only On Defective Prosuct.

All Government Taxes & GST Included.

Extra Charge On Installation.
