About this item

DIMENSIONS: - 910mm (Length) x 860mm (Width) x 1400mm.(Height).

Safe Area: - 1.39 x 1.27Mtr.

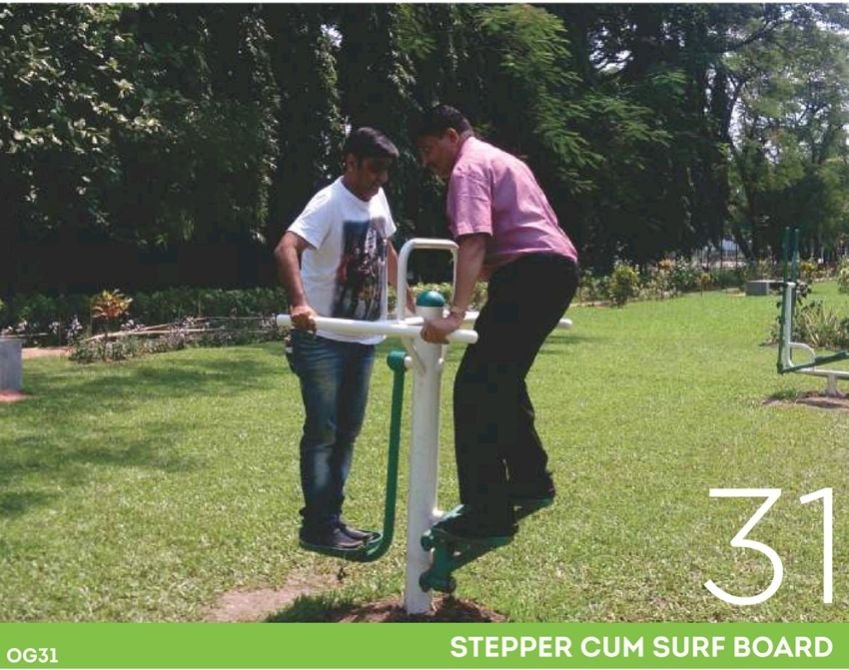

Surf Board cum stepper Equipment made from “C” Class G.I. pipe of  different NB.

NB stands for Nominal Bore Sizes i.e. Internal Diameter of pipe in millimeters.

Make of G I Pipe will be of Tata, Jindal, Swastik, Zenith or Siddharth.

The center pipe is of 100mm NB made from “C” class G.I. pipe.

The bottom support welded of M.S. plate of Ø 250 mm & 10mm thickness.

The handle frame is of  32NB made from “C”  class G.I. pipe .

The foundation used for fixing is a structure and made from center pipe of

G.I. of 80NB  “C” class.Welded with M.S. round plate of Ø250 mm & 10mm

thick.  Main pipe supported with 25 mm X 25mm M.S. angles of 3 mm

thickness and 20mm x  40mm CRC square pipes of 3mm thickness.

Bushes are used 70mm Outer Diameter with 5mm thickness is used.

The footrests made from Aluminum casting material of size 320mmX270mmX5mm.For support to footrest 200mmX250mm with 3mm thickness M.S. Plate used

Closing Caps are made up of high quality Fiber reinforced Plastic material.

The pins used are made up of Ø35 and Ø25 mm made from SAE 8620  bright matl.

The bearings used are of “6007zz” and “6205zz” permanent lubricated sealed

 bearing  of reputed brand (SKF/FAG).

The P.U. bushes (Stopper) used to avoid the collision.

High tensile steel with galvanized nut bolts are used for assembly.

The cerclips used for assembly are of A24  and A34The powder coating is done with Pure Polyester powder of Ackzonoble

 or Berger with 60 to 70 micron thickness

Only On Defective Prosuct.

All Government Taxes & GST Included.

Extra Charge On Installation.
