•   DIMENSIONS: - 1700mm (Length) x 540mm (Width) x 1250mm. (Height).

•   SAFE AREA: - 3 Mtr x 1Mtr.

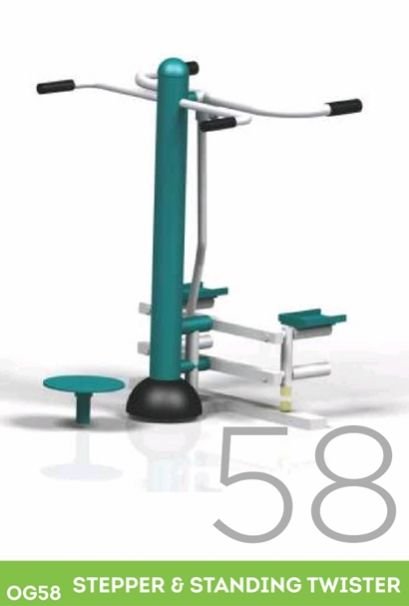

     •   Seating & Standing Twister equipment made from “C” Class G.I. pipe of

            different

           NB. NB stands for Nominal Bore Sizes i.e. Internal Diameter of pipe in

             millimeters.

     •   Make of G I Pipe will be of Tata, Jindal, Swastik, Zenith

         or Siddharth.

•   The Center Pipe is of 100mm NB made from “C” Class G.I. Round Pipe.

•    The M.S. round plate of Ø250 mm & 10mm thickness is welded at bottom.

•    Handle and Bottom sleeve pipe of 125mm OD with thickness 5mm provided for easy assembly, replacement and maintenance.

•   The bottom frame of the Seating & Standing twister is of 32 NB, 50 NB,

     And 25 NB made from “C” class G.I. pipe.

•    The handle frame of   Seating & Standing twister is 25 NB & Foot resting frame of seating side is made from “C” class G.I. pipe of 25mm NB.

•   The foundation used for fixing is a structure and made from center pipe of G.I. of 80 NB     “C” class, Welded with M.S. round plate of Ø250 mm & 10mm thick. Main pipe supported with 25 mm X 25mm M.S. angles of 3 mm thickness and 20mm x 40mm CRCA square pipes of 3mm thickness.

•   The Twister plate fitted on the bottom frame is made up of  M.S. Round

     Plate of size 300mm diameter and 10mm thickness.

•   Closing Caps are made up of high quality Fiber reinforced Plastic material.

•   The Pins  used are made up of Ø 35 mm SAE 8620 bright material.

•    The bearings used are of “6205zz” permanent lubricated sealed bearing of reputed brand (SKF/FAG).

•   High tensile steel with galvanized nuts & bolts are used for assembly.

            The powder coating is done by Pure Polyester powder of Berger Paint with

          60 to 70 micron thickness

Only On Defective Prosuct.

All Government Taxes & GST Included.

Extra Charge On Installation.
