About this item

•   DIMENSIONS: - 900mm (Length) x 500mm (Width) x 900mm (Height).

•   Safe Area:-1 Mtr X 2 Mtr

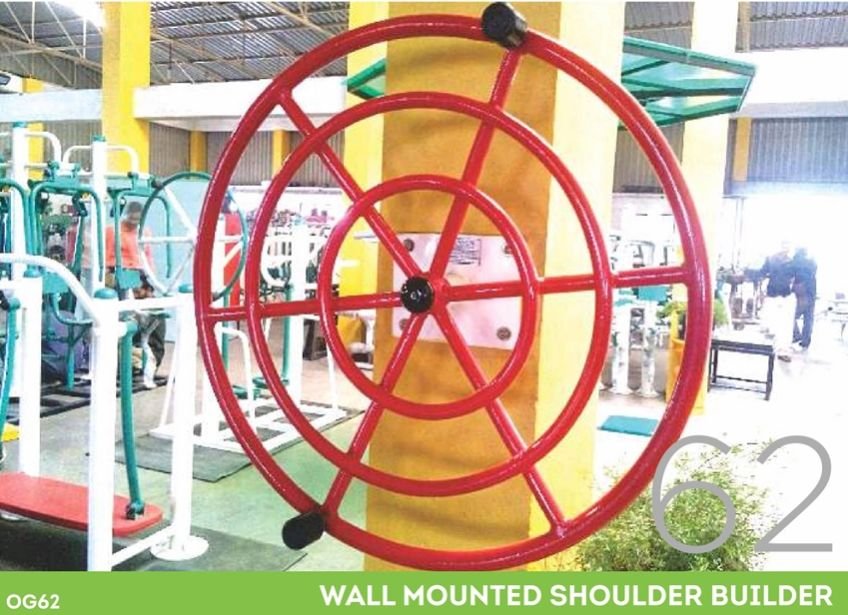

  •   Shoulder Builder Equipment made from  “C” Class G.I. pipe of different NB.

         NB stands for Nominal Bore Sizes i.e. Internal Diameter of pipe in

      millimeters.

  •   Make of G I Pipe will be of Tata, Jindal, Swastik, Zenith or

      Siddharth.

  •   Wheel is of 25NB & 20 NB made from “C” class GI

      pipe.

 •   The pins used are made up of Ø 25 mm of SAE 8620 bright material.

•    The bearing used is “6201zz” & “6205zz” permanent lubricated sealed

     bearing of reputed brand (SKF/FAG).

•   High tensile steel with galvanized ANCHOR bolts are used with ms plate for

     Mounting on wall.

•   The nylon bush is used for handle knob

•   The cerclips used for assembly is of A 24.

•   The plastic bush is used for handle knob.

 •    The powder coating done with Pure Polyester powder of Ackzonoble or

     Berger Paints with 60 to70 micron thick
